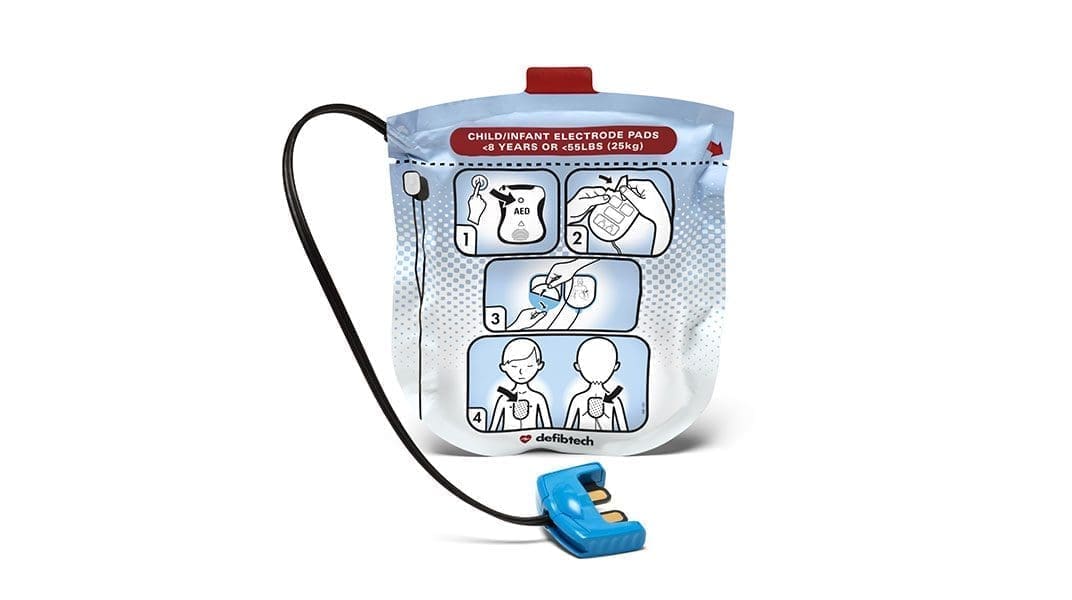

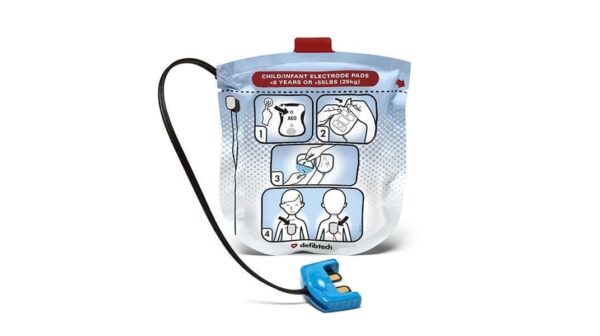

Defibtech DDP-2002 Pediatric AED Pads – OEM Replacement for VIEW AED

Defibtech DDP-2002 Pediatric AED Pads – For Defibtech VIEW AED

Be prepared to save young lives with Defibtech DDP-2002 Pediatric AED Pads, specifically made for use with the Defibtech VIEW AED. These OEM electrode pads are designed for children under 8 years old or under 55 pounds (25 kg), and feature a preconnected design for fast response during a pediatric cardiac emergency.

🔍 Key Features of the DDP-2002 Pediatric Pads

• ✅ For Pediatric Use – Made for children under 8 years or 55 lbs

• ✅ OEM Defibtech Part – Part #: DDP-2002

• ✅ 2-Year Shelf Life – Replace after 2 years or immediately after use

• ✅ Preconnected Design – Reduces time to treatment

• ✅ Clear Child Labeling – Helps avoid confusion in high-stress situations

• ✅ Compatible AED – Works exclusively with the Defibtech VIEW AED

⚙️ Detailed Product Specifications

🧾 Meets all FDA, AHA, and Defibtech requirements. OEM-certified for use with the VIEW AED.

• Part Number: DDP-2002

• Intended Use: Children under 8 years old or under 55 lbs (25 kg)

• Defibrillation Energy: 50 Joules (pediatric attenuated)

• Waveform: Biphasic Truncated Exponential

• Connector Type: Preconnected plug

• Packaging: Foil pouch with pediatric icon

• Shelf Life: 2 years

• Operating Temp: 32°F to 122°F (0°C to 50°C)

• Storage Temp: 32°F to 122°F (0°C to 50°C)

• Humidity Range: 5% to 95% (non-condensing)

• Altitude Range: -500 to 15,000 ft (-150 to 4,500 m)

• Latex-Free: Yes

⚡ In Stock & Ships Fast
Order now — always fresh OEM inventory. Fast U.S. shipping from AEDLAND.

📦 What’s Included in the Box

• 1 set of Defibtech DDP-2002 pediatric pads (sealed foil pouch)

• OEM instructions for installation and use

🧒 Who Should Use These Pads?

These pads are designed for:

• Pediatric patients under 8 years of age

• Children under 55 lbs (25 kg)

For patients over 8 years old or 55 lbs, see Defibtech DDP-2001 Adult Pads.

🛠️ How to Replace the DDP-2002 Pads

1. Turn off the Defibtech VIEW AED before handling the pads.

2. Open the clear plastic pad compartment on the back of the AED.

3. Disconnect the existing connector from the yellow port.

4. Remove the old pads and discard appropriately.

5. Place the sealed DDP-2002 pouch into the compartment, making sure the expiration date is visible.

6. Plug in the new pad connector securely into the yellow port.

7. Close the compartment door. The AED will indicate readiness with a green flashing light.

🧠 Tip: Always keep a backup pediatric pad set available to stay compliant and rescue-ready.

📊 Pediatric AED Pad Compatibility Chart

🔗 Looking for other AED pads? Browse all AED Pads at AEDLAND »

🔗 Shopping Defibtech-only? View all Defibtech AED Pads »

❓ Frequently Asked Questions About the DDP-2002

Q: Are the DDP-2002 pads compatible with the Lifeline or Lifeline AUTO AED?

No. The DDP-2002 pediatric pads are only compatible with the Defibtech Lifeline VIEW AED. They do not work with the original Lifeline or Lifeline AUTO AEDs.

Q: What’s the expiration and shelf life for these pediatric AED pads?

Defibtech DDP-2002 pads have a 2-year shelf life from the date of manufacture. Always check the printed expiration date on the foil pouch before use or installation.

Q: What is the difference between pediatric and adult AED pads?

Pediatric AED pads like the DDP-2002 deliver a reduced energy dose (50J) and are sized specifically for children under 8 or under 55 lbs. Adult pads deliver a full shock and should not be used on small children.

Q: Can I store both pediatric and adult pads with the VIEW AED?

Yes. It’s highly recommended to store both adult and pediatric Defibtech pads with your VIEW AED to ensure you’re prepared for all age groups during an emergency.

Q: What battery works with the DDP-2002 pads on the VIEW AED?

The DDP-2002 pediatric pads are used with the Defibtech DBP-2003 battery, which powers the Lifeline VIEW AED. Do not use the DBP-2800 — it is not compatible with this device.
